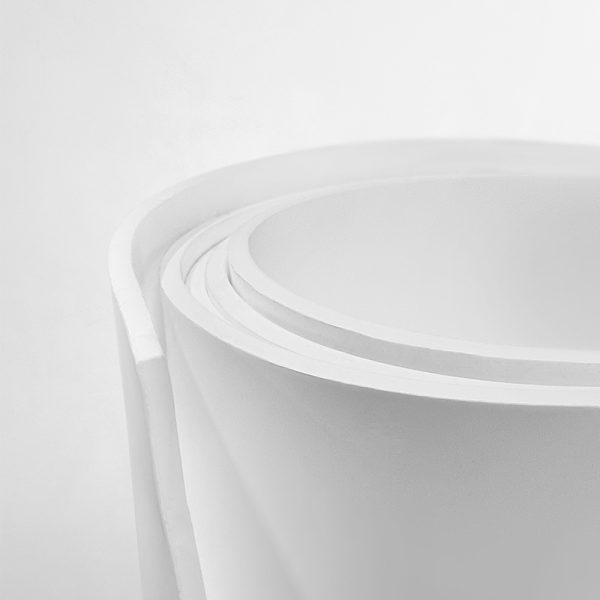

Expanded PTFE Sheet (Low Creep) (CVS® FL2000)

CVS® FL2000 is a soft, conformable material with cold flow properties that has been improved by mixing organic filler with it using a special manufacturing technique.

Brand: CVS®
IMPA: 811381; 811382; 811383; 811384; 811385; 811386; 811387; 811388; 811389;

Description

CVS® FL2000 is a soft, conformable material with cold flow properties that has been improved by mixing organic filler with it using a special manufacturing technique.

Application:

Ideal for use in pipelines handling all type of chemical products such as highly concentrated hot sulfuric and nitric acids. Cannot be used with sodium hydroxide or other highly concentrated alkalis and hydrofluoric acid.

Product Features:
  • High-temperature resistance
  • High anti-creeping and acid-resistance properties
  • Very low cold-flow tendency
  • Superior softness and flexibility
  • Easy to cut, punch and plotter

Additional information

Temperature Resistance up to

-200ºC to 300ºC

Tensile Strength

15.2 kgf/mm2

Density

2.33 g/cm3

Elongation

340%

Compressibility

4.6%

Recovery

59%

Creep Relaxation

48%

Pressure

3.92 kgf/cm2
