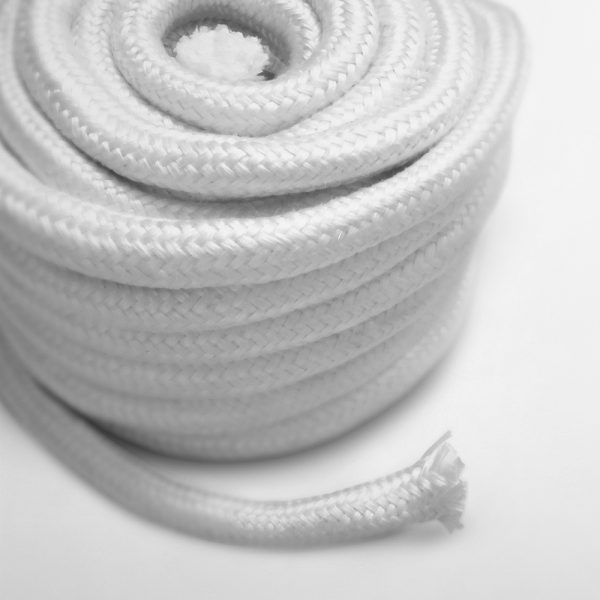

Fire Door Packing (NG100)

CVS® Fire Door Packing (NG100) is fabricated using high quality texturized fiberglass yarns wrapped around a ceramic wool core.

Please specify the required length (in Meters) of the fire door packing in the comment section on the enquiry cart page after adding the item to your cart.

Brand: CVS®

Description

CVS® Fire Door Packing (NG100) is fabricated using high quality texturized fiberglass yarns wrapped around a ceramic wool core.

Please specify the required length (in Meters) of the fire door packing in the comment section on the enquiry cart page after adding the item to your cart.

Application:

Can be used as a gasket or seal on boilers, cooker ovens, industrial ovens and wood stove/pellet stove doors. It is also used for crucible packing, pollution control equipment, and pump shaft packing.

Product Features:
  • The material is resistant to most acids and alkalis, as well as most bleaches and solvent
  • Flexible and conformable, can be used in a variety of ways

Additional information

Technical Specifications

Appearance: Square Braided
Yarn Filament: 11 μm
Temperature Resistance up to: 550°C
Low Thermal Conductivity: ≤0.035 kcal/mh°C

Chemical Composition (Outer Fiberglass)

SiO2: 54.1 ± 0.5%
Al2O3: 14.6 ± 0.4%
CaO: 16.6 ± 0.3%
MgO: 4.6 ± 0.3%
R2O: < 0.8%
Fe2O3: < 0.4%
B2O3: 8.8 ± 0.5%

Chemical Composition (Inner Ceramic Fiber Core)

Al2O3 + SiO2: 97%
Al2O3 + SiO2 + ZrO2: –
Al2O3: ≥ 46%
Fe2O3: ≤ 1%
Na2O + K2O: ≤ 0.5%
