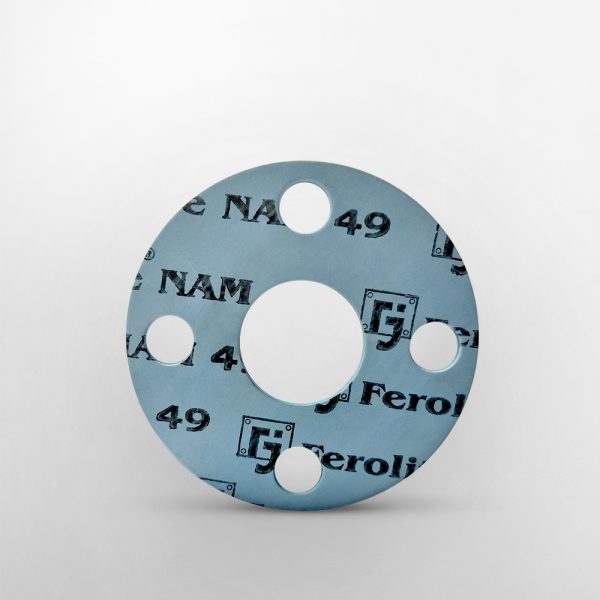

Non-Asbestos Full Face Gasket (Ferolite® NAM 49)

Ferolite® NAM 49 is a water and oil resistant joint sheet composed of cellulose fiber, mineral fiber, organic fiber, and NBR binder.

Begin ordering Ferolite® NAM 49 full face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Brand: Ferolite®
Product Line: Industrial & Mechanical Needs
Category: Packing & Jointing Products
Sub Categories: Joint Sheets & Gaskets

Description

Ferolite® NAM 49 is a water and oil resistant joint sheet composed of cellulose fiber, mineral fiber, organic fiber, and NBR binder.

Begin ordering Ferolite® NAM 49 full face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Application:

Ferolite® NAM 49 full face gasket for sealing raised flanges, has a specified number of holes for bolts to pass through, easing alignment and clamping, and fills gap between the bolting surfaces. Joint must be completely dissembled for installation.

Additional information

Density

1.7-2.0g/cm3
Tensile Strength

(a) ACC To ASTM F152 (Across Grain): > 7N/mm2
(b) ACC To DIN52910 (Across Grain): > 5N/mm2
Compressibility

5-15%
Recovery

> 40%
Fluid Absorption

(a) In ASTM Oil No.3
Increase In Mass: < 15
Increase In Thickness: < 10

(b) In Fuel
Increase In Mass: < 10
Increase In Thickness: < 10

(c) In Water/Anti-Freeze
Increase In Mass: < 15
Increase In Thickness: < 15
Ignition Loss

< 40%
Max Peak Temperature

250°C
Max Continuous Temperature

180°C
Max Continuous Temperature with Steam

120°C
Max Operating Pressure

50Kgf/cm2
