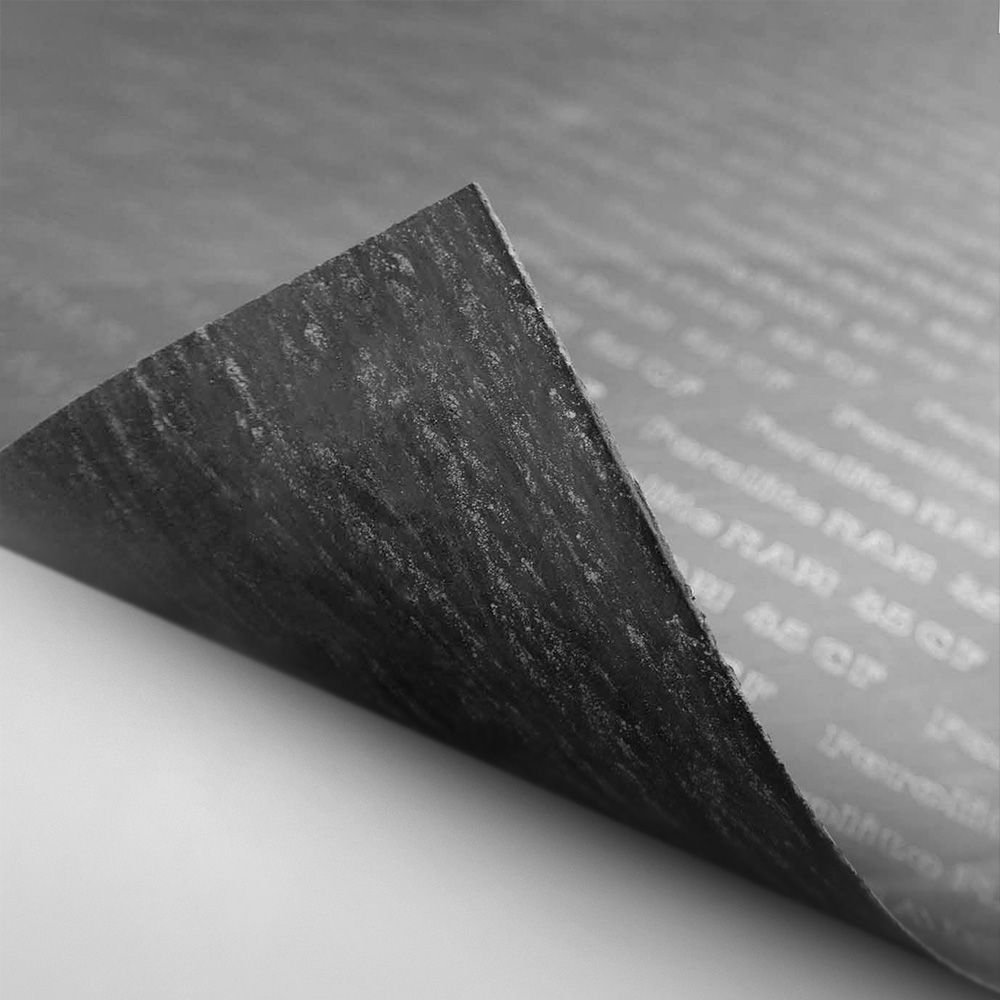

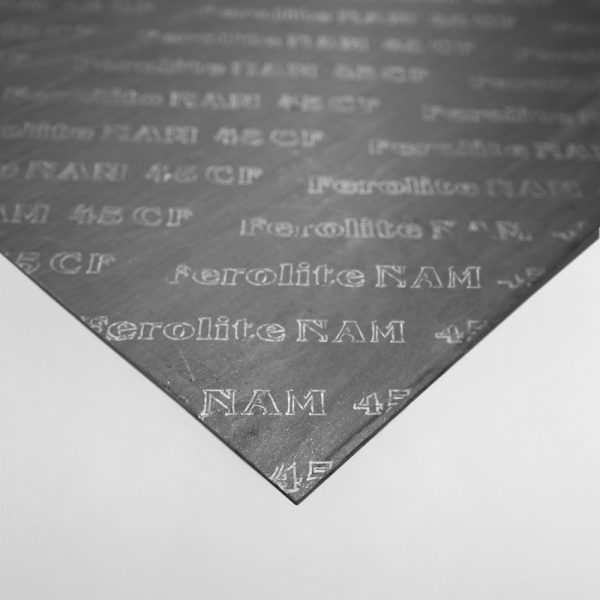

Non-Asbestos Joint Sheet (Ferolite® NAM 45CF)

Ferolite® NAM 49 is a water and oil resistant joint sheet composed of cellulose fiber, mineral fiber, organic fiber, and NBR binder.

Add to Enquiry
Brand: Ferolite®
Product Line: Industrial & Mechanical Needs
Category: Packing & Jointing Products
Sub Categories: Joint Sheets & Gaskets

Description

Ferolite® NAM 45CF joint sheet is specifically designed to resist numerous aggressive chemicals used by industry today. This joint sheet is composed of aramid fiber, carbon fiber, and NBR binder. It exhibits excellent resistance to steam and strong alkaline, as well as good sealing and torque retention.

Application:

Widely used in chemical and petrochemical industries. Additionally, it can seal oil, fuel, gases, freons, and be used in pipelines, radiators, boilers, and many other  flanged joints in the paper and pulp industry.

Additional information

Density

1.7-2.0g/cm3
Tensile Strength

(a) ACC To ASTM F152 (Across Grain): > 8N/mm2
Compressibility

5-15%
Recovery

> 50%
Fluid Absorption

(a) In ASTM Oil No.3
Increase In Mass: < 10
Increase In Thickness: < 8

(b) In Fuel
Increase In Mass: < 10
Increase In Thickness: < 7

(c) In Water/Anti-Freeze
Increase In Mass: < 10
Increase In Thickness: < 7
Ignition Loss

< 30%
Sealability Against Nitrogen

< 0.5cm3/min
Stress Resistance

16H (300°C ): ~ 20N/mm2
16H (175°C ): ~ 30N/mm2
Max Peak Temperature

400°C
Max Continuous Temperature

300°C
Max Continuous Temperature with Steam

280°C
Max Operating Pressure

150Kgf/cm2
