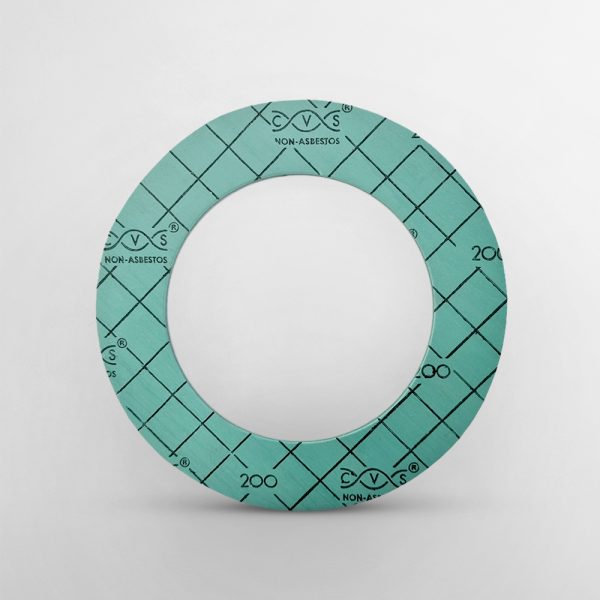

Non-Asbestos Ring Face Gasket (CVS® 200)

CVS® 200 is a water and oil resistant joint sheet composed of organic fiber, mineral fiber, NBR fiber, and high-quality elastomers.

Begin ordering CVS® 200 full face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Brand: CVS®
Product Line: Industrial & Mechanical Needs
Category: Packing & Jointing Products
Sub Categories: Joint Sheets & Gaskets

Description

CVS® 200 is a water and oil resistant joint sheet composed of organic fiber, mineral fiber, NBR fiber, and high-quality elastomers.

Begin ordering CVS® 200 ring face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Application:

CVS® 200 ring face gasket seals over a smaller area than full face designs and apply higher compressive loads for a given bolt tightness. Requires less material and less cutting. Can be installed without completely dissembling the joint.

Additional information

Density

1.7g/cm3
Tensile Strength

(a) ACC To ASTM F152: ≥ 7N/mm2
(b) ACC To DIN52910: ≥ 5N/mm2
Compressibility

≥ 5-15%
Recovery

≤ 40%
Fluid Absorption

(a) In ASTM Oil No.3
Increase In Mass: ≤ 15
Increase In Thickness: ≤ 10

(b) In Fuel
Increase In Mass: ≤ 10
Increase In Thickness: ≤ 10

(c) In Water/Anti-Freeze
Increase In Mass: ≤ 15
Increase In Thickness: ≤ 7
Ignition Loss

≤ 40%
Stress Resistance

16H (300°C): ~ 23N/mm2
16H (175°C): ~ 30N/mm2
Max Peak Temperature

250°C
Max Continuous Temperature

180°C
Max Continuous Temperature with Steam

120°C
