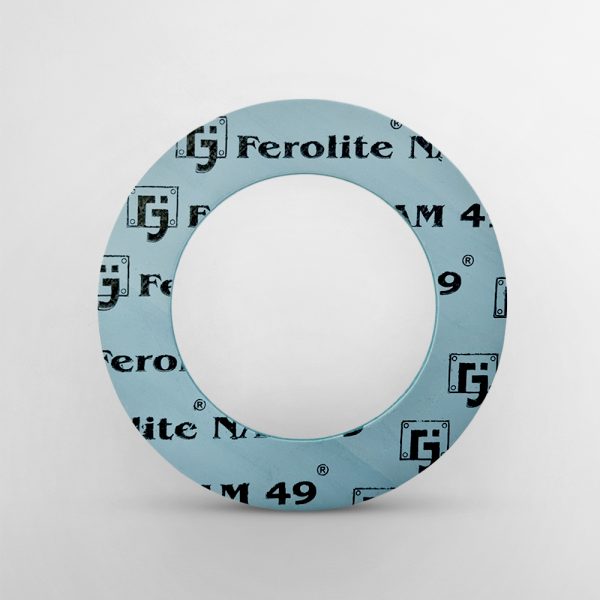

Non-Asbestos Ring Face Gasket (Ferolite® NAM 49)

Ferolite® NAM 49 is a water and oil resistant joint sheet composed of cellulose fiber, mineral fiber, organic fiber, and NBR binder.

Begin ordering Ferolite® NAM 49 ring face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Brand: Ferolite®
Product Line: Industrial & Mechanical Needs
Category: Packing & Jointing Products
Sub Categories: Joint Sheets & Gaskets

Description

Ferolite® NAM 49 is a water and oil resistant joint sheet composed of cellulose fiber, mineral fiber, organic fiber, and NBR binder.

Begin ordering Ferolite® NAM 49 ring face gasket from Aste® by downloading the gasket template order forms. Fill in the dimensions and send it to us for a free quote. Do ensure you select the correct template according to your gasket requirements.

Application:

Ferolite® NAM 49 ring face gasket seals over a smaller area than full face designs and apply higher compressive loads for a given bolt tightness. Requires less material and less cutting. Can be installed without completely dissembling the joint.

Additional information

Density

1.7-2.0g/cm3
Tensile Strength

(a) ACC To ASTM F152 (Across Grain): > 7N/mm2
(b) ACC To DIN52910 (Across Grain): > 5N/mm2
Compressibility

5-15%
Recovery

> 40%
Fluid Absorption

(a) In ASTM Oil No.3
Increase In Mass: < 15
Increase In Thickness: < 10

(b) In Fuel
Increase In Mass: < 10
Increase In Thickness: < 10

(c) In Water/Anti-Freeze
Increase In Mass: < 15
Increase In Thickness: < 15
Ignition Loss

< 40%
Max Peak Temperature

250°C
Max Continuous Temperature

180°C
Max Continuous Temperature with Steam

120°C
Max Operating Pressure

50Kgf/cm2
