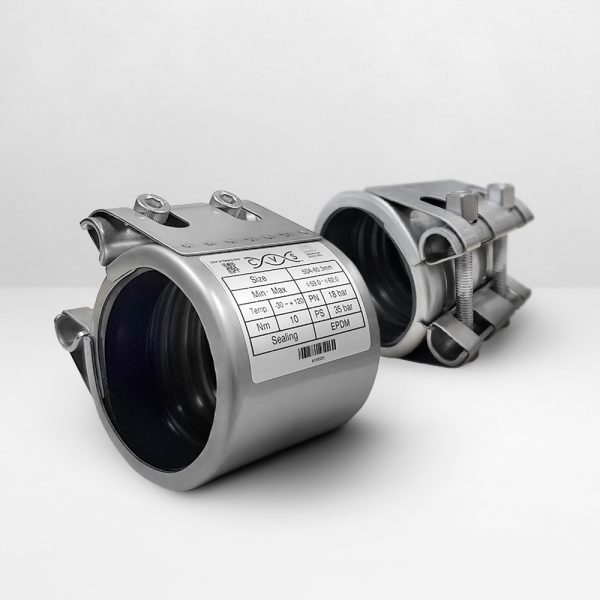

Pipe Coupling (Flex-Type)

CVS® Pipe Couplings (Flex-Type) are multifunctional couplings with two thick sealing lips which allow for pipe expansion and contraction, as well as angular deflection. These couplings require the pipes to be axially restrained and they are an economical alternative to rubber and metal expansion joints. Available in (EPDM) or (NBR) Rubber sleeve.

Brand: CVS®
IMPA: 614150; 614151; 614152; 614153; 614154; 614155; 614156; 614157; 614158; 614160; 614161; 614162; 614163; 614164; 614165; 614166; 614167; 614168;

Description

CVS® Pipe Couplings (Flex-Type) are multifunctional couplings with two thick sealing lips which allow for pipe expansion and contraction, as well as angular deflection. These couplings require the pipes to be axially restrained and they are an economical alternative to rubber and metal expansion joints. Available in (EPDM) or (NBR) Rubber sleeve.

Application:

Suitable for use on applications such as water and gas lines, water and waste water treatment plants, production and chemical industries, power plants, mining, shipbuilding industries and various engineering scopes. Can be installed in a few minutes easily.

Product Features:
  • Universal usage
  • Easy to install
  • Economical
  • Durable and reliable
  • Space-saving

Additional information

Product Material

Casing: AISI 304
Bolts: AISI 304
Bars: AISI 304

Sealing Sleeve Available

(EPDM) Rubber
Temperature Resistance: -30°C to 120°C
Applications: All qualities of water, waste water, air, solids and chemical products

(NBR) Rubber
Temperature Resistance: -30°C to 120°C
Applications: Water, gas, oil, fuel, and other hydrocarbons

Technical Specifications

For full specifications, see product's technical datasheet

Product Datasheets

Please select a product variation to see the downloads.
